A leading manufacturer of transparent plastic sheets

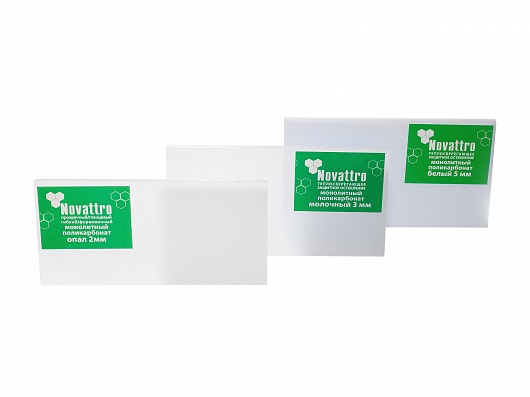

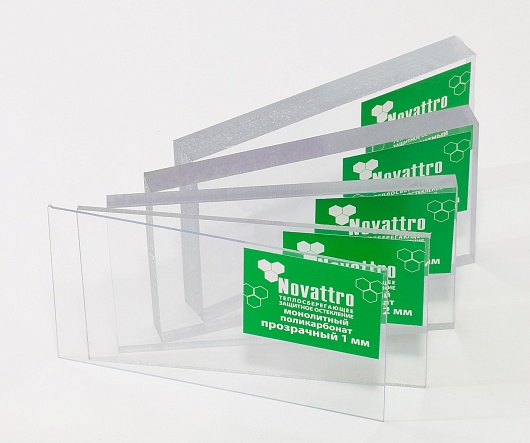

Solid polycarbonate
Novattro is:
- vandalism protection
- in 2 times lighter than glass
- possible to cold bending (arched transparent design)
- long duration of life
Assortment
The size of sheet
Thickness

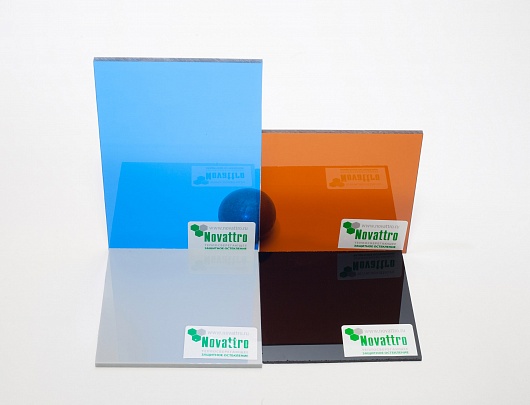

Color
Advantage
Novattro has the highest ratings for impact resistance
Solid polycarbonate Novattro is protivooterne polymer glass according to GOST R 51136 "safety glass". Novattro has the highest ratings for impact resistance and resistance to penetration. Polycarbonate not broken into fragments, which are the primary cause of massive injuries. Monolithic polycarbonate is also called a metallic glass for high impact strength, which provides the sheets of vandal-proof strength and flexibility.
Download the certificate in the "Documents" section below.
Multy-wall polycarbonate sheets Novattro meets all the requirements of GOST R 56712 "Multy-wall polycarbonate panels". The key parameters are the thickness of the UV-layer and the density of the sheet. The GOST and the certificate Novattro are given in the documents tab.
Multy-wall sheets Novattro have a guaranteed service life of not less than 14 years, which is confirmed by the test protocols in cell aging GUP NII Mosstroy and LLC "AKADEM-SIB". (see Documents tab) The manufacturer's liability is fixed in the Declaration of guarantee of quality of products of LLC "SafPlast".
Polycarbonate sheets of different manufacturers differ greatly in quality and service life, which is a key factor for the engineering materials. Polycarbonate is exposed to solar radiation, and if the sheets are not protected by a special UV-layer of optimal thickness, after two or three years the material will disintegrate. The sheets Novattro are protected by UV-layer of optimal concentration and thickness (not less than 40 micron - 60 micron) (the best in the world OMiPA extrusion equipment ensures uniform application of UV-layer). On solid polycarbonate sheets UV-layer is applied on both sides of the sheet (this is a necessary condition for transparent fences and noise screens).
guarantees a service life of polycarbonate and acrylic sheets and is a legally registered financial responsibility of the producer to the consumers. Attached to the payment documents warranty card sends the user to this Declaration and its provisions.
In contrast to the certificates the Declaration is the presence of the registered obligations of the producer to the consumer (reimbursement of the cost of sheets).
Download the Declaration in the section "Documents" below.
Read more about quality here.
Technical support
Experts SafPlast developed a reference book "On the use of polycarbonate in construction" (on russian). This book will help to design and install structures with cellular and solid polycarbonate. We also provide detailed instructions.
Technical support with design (for installation) designs with a locking panel Novattro PROF is having technical expert Kuznetsov Vladimir Medvedev , who for more than 10 years of experience working with locking polycarbonate panels. Write Your question to Vladimir Anatolyevich the mail v.kuznetsov@safplast.ru.
Construction
 |
The popularity of polycarbonate sheets, panels and profiles Novattro as building materials due to a unique combination of properties: high heat and sound insulation, transparence and impact proof. Read more |
Advertising
 |
Materials Novattro is a complex of transparent (clear and coloured) polymer sheets for a variety of advertising structures. Read more |
Industry
- transparent screens that protect the equipment
- replace broken glass on equipment and devices (easy manual cutting)
- packing material (replacement board)
General characteristics
|
|
Sheet thickness (mm) |
|||||||||
|
1 mm |
1.5 mm |
2 mm |
3 mm |
4 mm |
5 mm |
6 mm |
8 mm |
10 mm |
12 mm |
|
|
Weight, kg / sq.m |
1.2 |
1.8 |
2,4 |
3,6 |
4,8 |
6 |
7,2 |
9,6 |
12 |
14,4 |
|
Minimum bending radius, m |
|
0,3 |
0,45 |
0,6 |
0,75 |
0,9 |
1,2 |
1,5 |
1,8 |
|
|
Airborne sound insulation index, no less |
|
|
16 db |
18 db |
19 db |
20 db |
21 db |
23 db |
25 db |
26 db |
|
Heat transfer resistance, |
|
|
0,17 - 0,18 |
0,18 |
0,18 - 0,19 |
0,19 |
0,2 |
0,2 - 0,21 |
0,21 - 0,22 |
0,23 |
|
Light transmission (transparent sheets) |
90% |
88.5% |
88.5% |
88% |
87% |
86,5% |
86% |
86% |
86% |
84% |
|
Absorbed impact energy, Nm |
|
|
>200 |
>200 |
>400 |
>400 |
>400 |
>400 |
>400 |
>400 |
|
Tensile strength |
64,5 MPa |
66,5 MPa |
67.2 MPa |
|||||||
|
Elongation at break |
8,1% |
8,1% |
9.9% |
10.7% |
||||||
Physico-mechanical characteristics: comparison with glass
|
Silicate glass («common») |
Solid polycarbonate Novattro |
|
|
Thickness |
4 mm |
4 mm |
|
Weight, kg / sq.m |
9,4 |
4,8 |
|
Minimum bending radius R min., M |
- |
0,6 |
|
Heat transfer coefficient, W / m2 • ° С |
5,8 |
3,8-4,1 |
|
VST, °C |
600 |
145 |
|
The coefficient of linear thermal expansion K-1 • 10-5 |
0,9 |
6,5 |
|
Tensile strength, MPa |
3,4 |
57,7 |
|
Charpy impact notch, kJ / m2 |
- |
35 |
|
Gardner Impact Resistance (J) |
- |
>400 |
|
Maximum bending strength MPa, not less |
- |
73,67 |
|
Light transmittance,% |
89 |
85 |
Light transmittance
|
Sheet thickness |
Transparent |

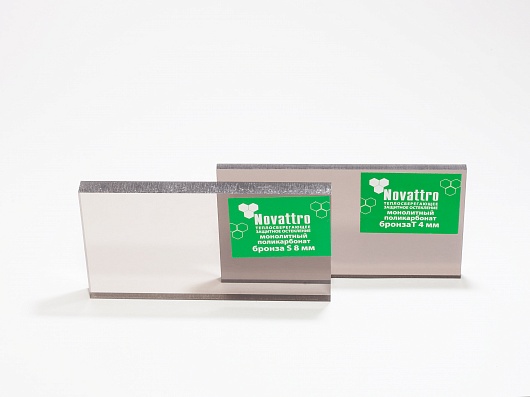

Bronze S50 |
Bronze T25 |

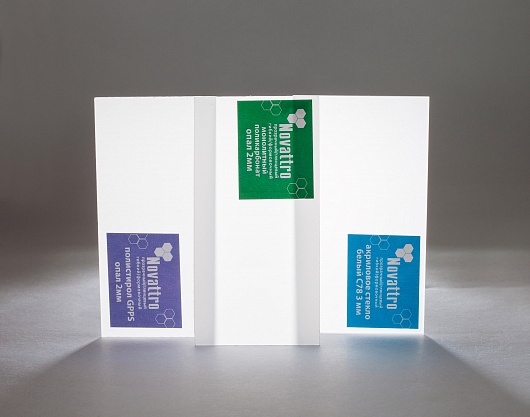

Milk/opal |
|
|
2 mm |
89-90% |
50,9% |
25% |
66,1% opal |
24,9%- |
|
3 mm |
88% |
49,5% - |
23% - |
||
|
4 mm |
87% |
|
20%* |
||
|
5 mm |
87.5% |
|
16-17%* |
||
|
6 mm |
87.2% |
43,2%* |
11-12%* |
||
|
8 mm |
87.1% |
|
8-9%* |
||
|
10 mm |
86,9% |
|
|
||
|
12 mm |
86,4% |
|
|
|
* order item
