Main pageApplication

Construction

The popularity of polycarbonate sheets, panels and profiles Novattro as building materials due to a unique combination of properties: high heat and sound insulation, transparence and impact proof.


Portfolio NOVATTRO

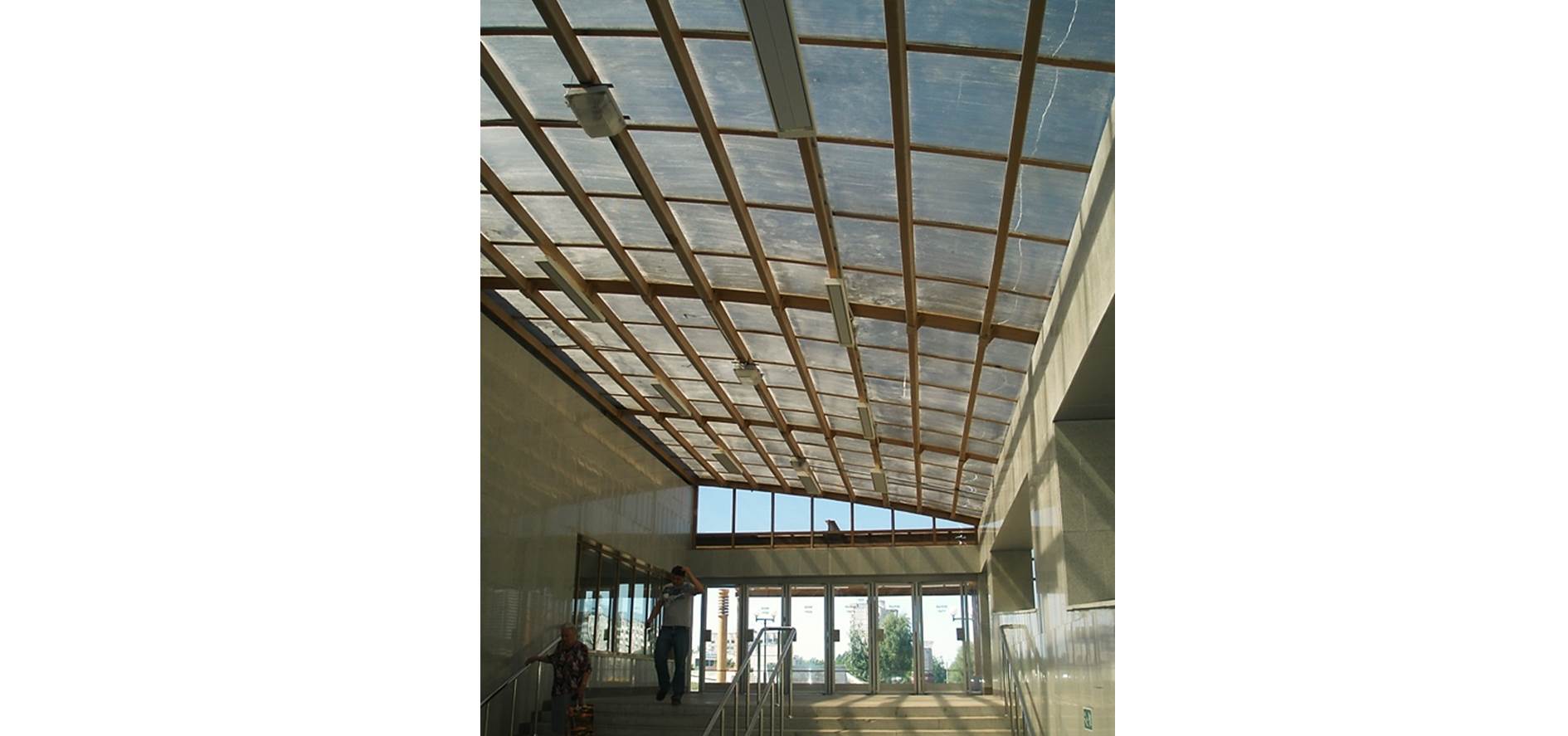

Roof
Roof
Roof
Roof

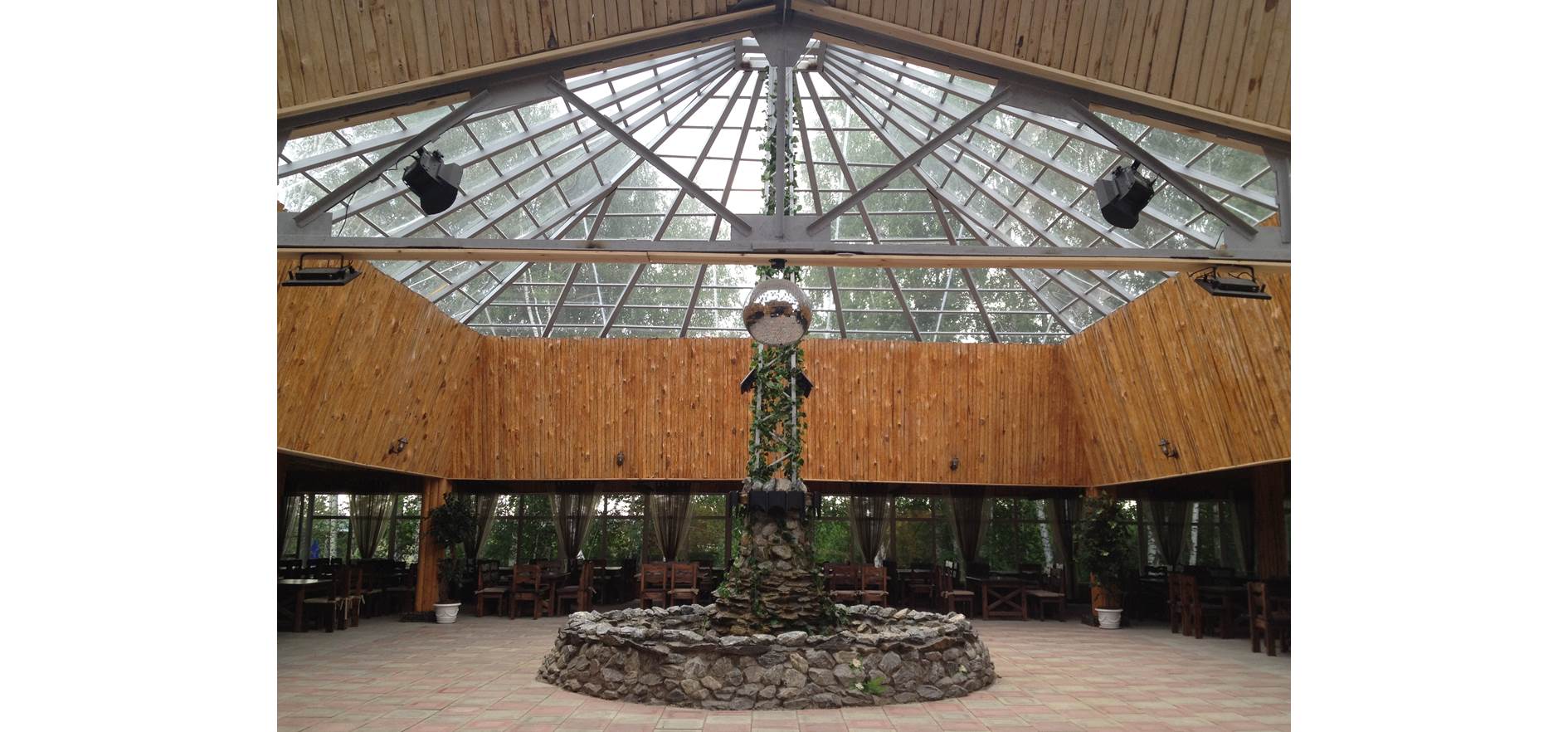

Tomsk, Moskovskiy trakt, 119
The roof of the restaurant, Solid polycarbonate Novattro, transparent, thickness 5 mm,
design and installation - company "Stekloplast"
Roof
Roof
Roof
Roof

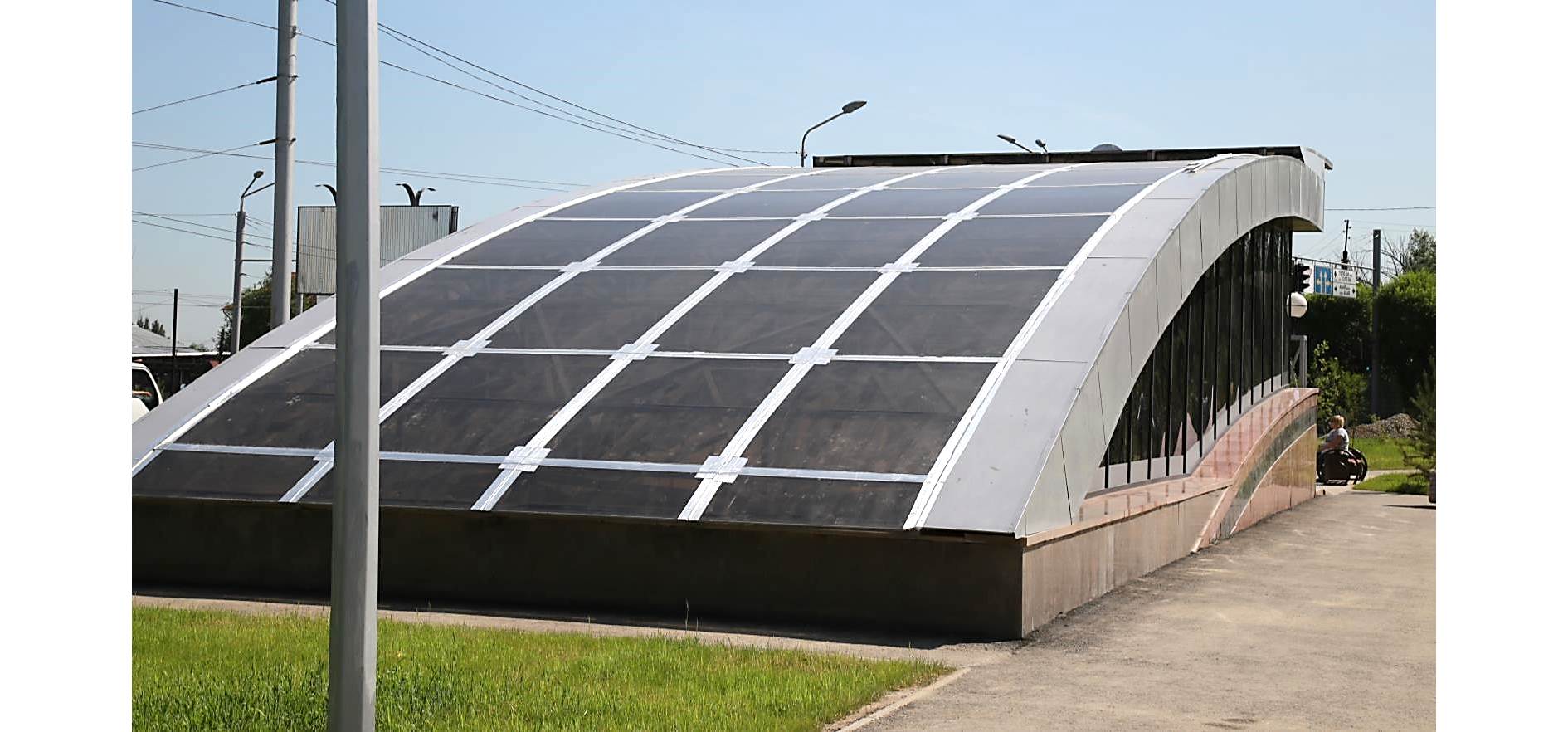

Kazan, metro station "Prospekt Pobedy"
The roof, turning into a facade, canopy
Solid polycarbonate Novattro, transparent and the color of dark bronze
Roof
Roof
Roof
Canopy

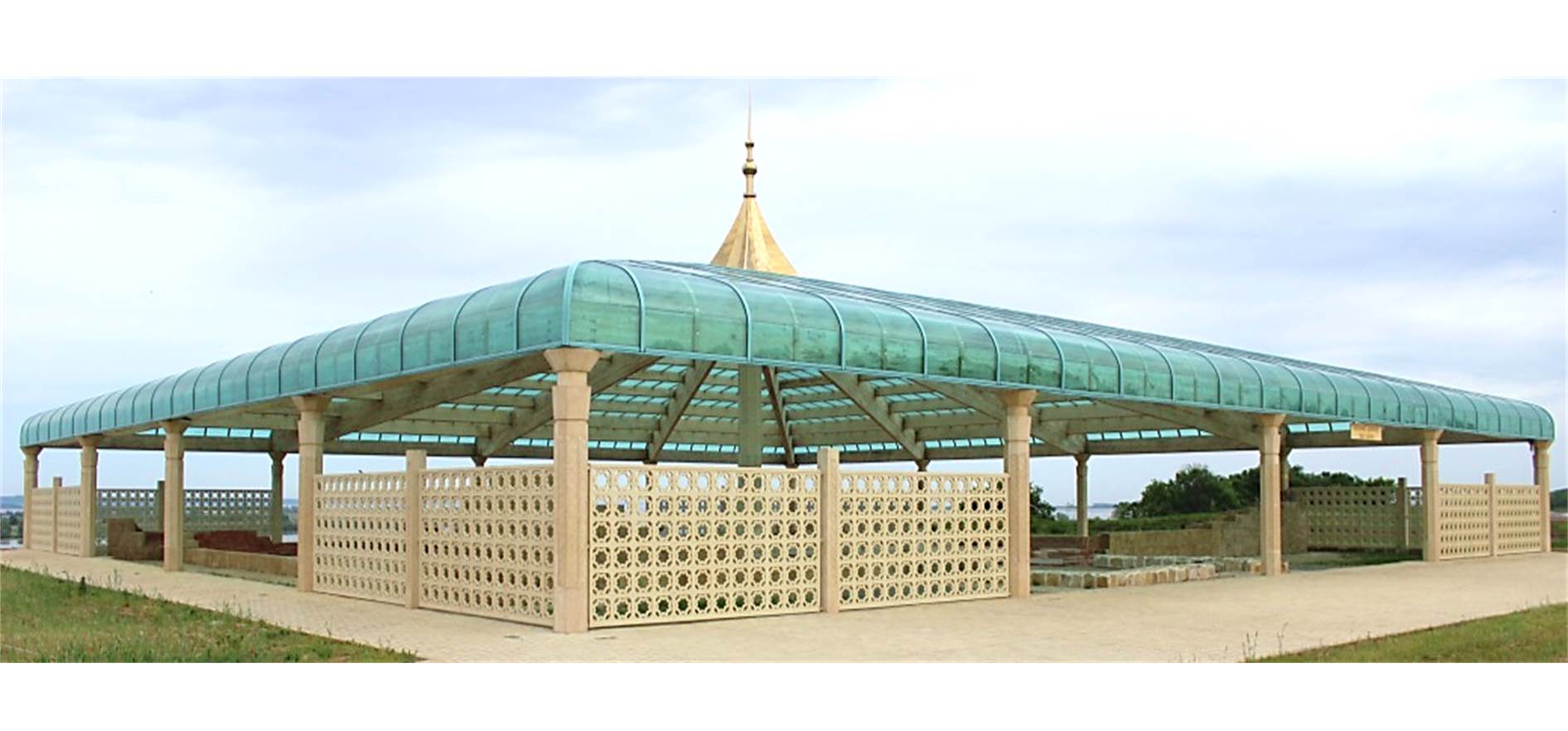

Bolgar Historical and Archaeological Complex,  the canopy over the excavate of Khan's Palace
The canopy area of approx. 2000 sq. m
Solid polycarbonate Novattro, 8 mm, light green (the color of old bottle glass)
Project: "Tatinvestgrazhdanproekt"

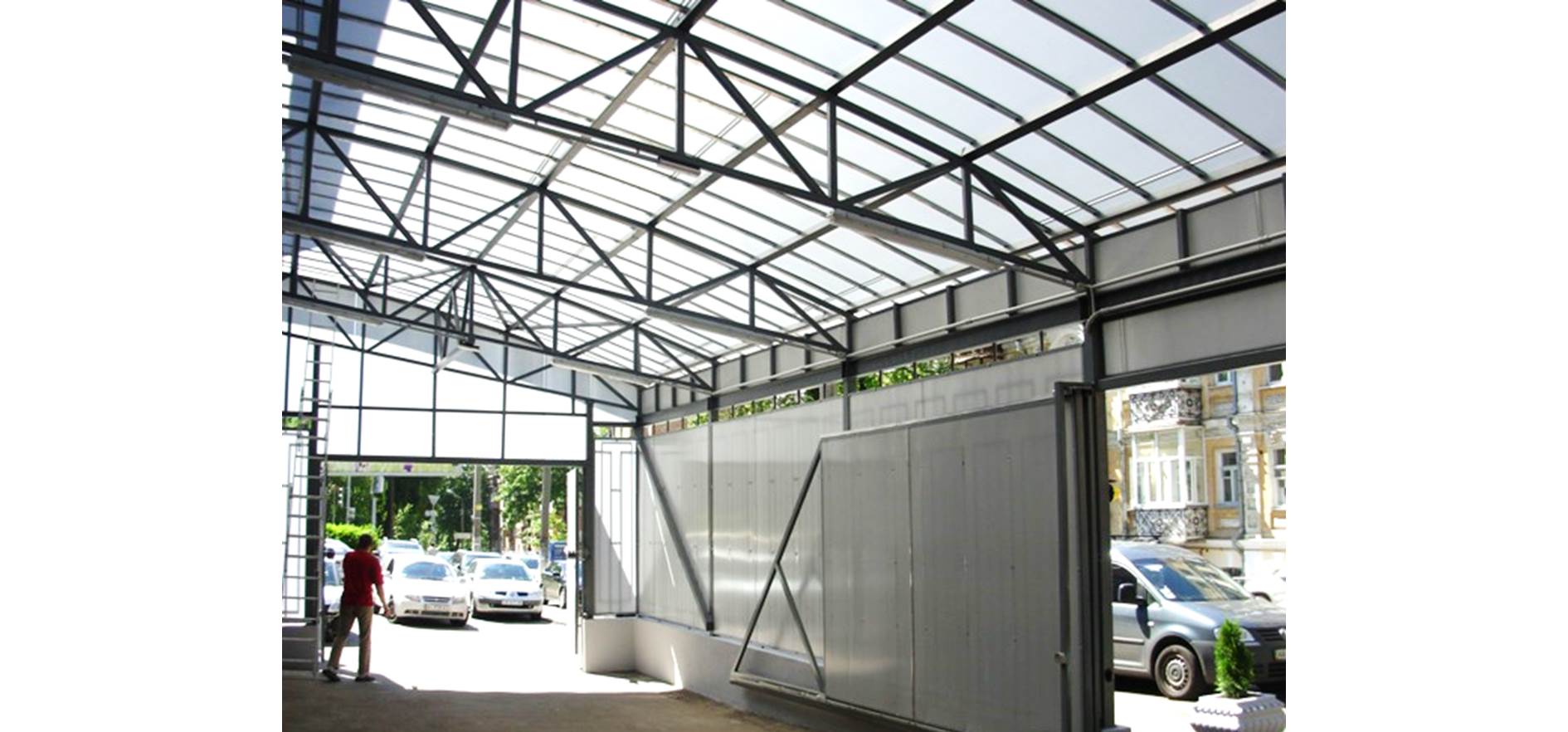

Canopy
Canopy
Canopy
Canopy
Canopy

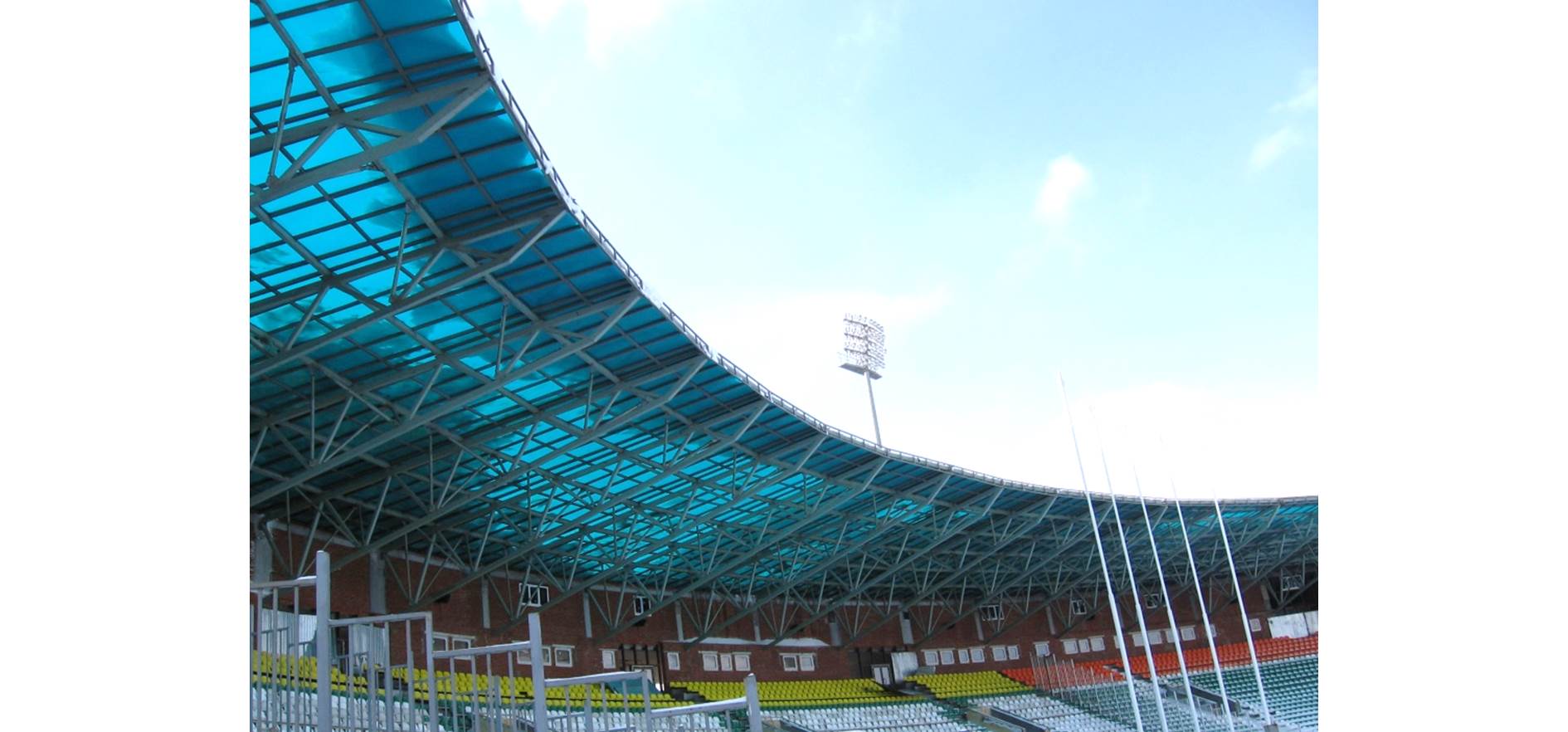

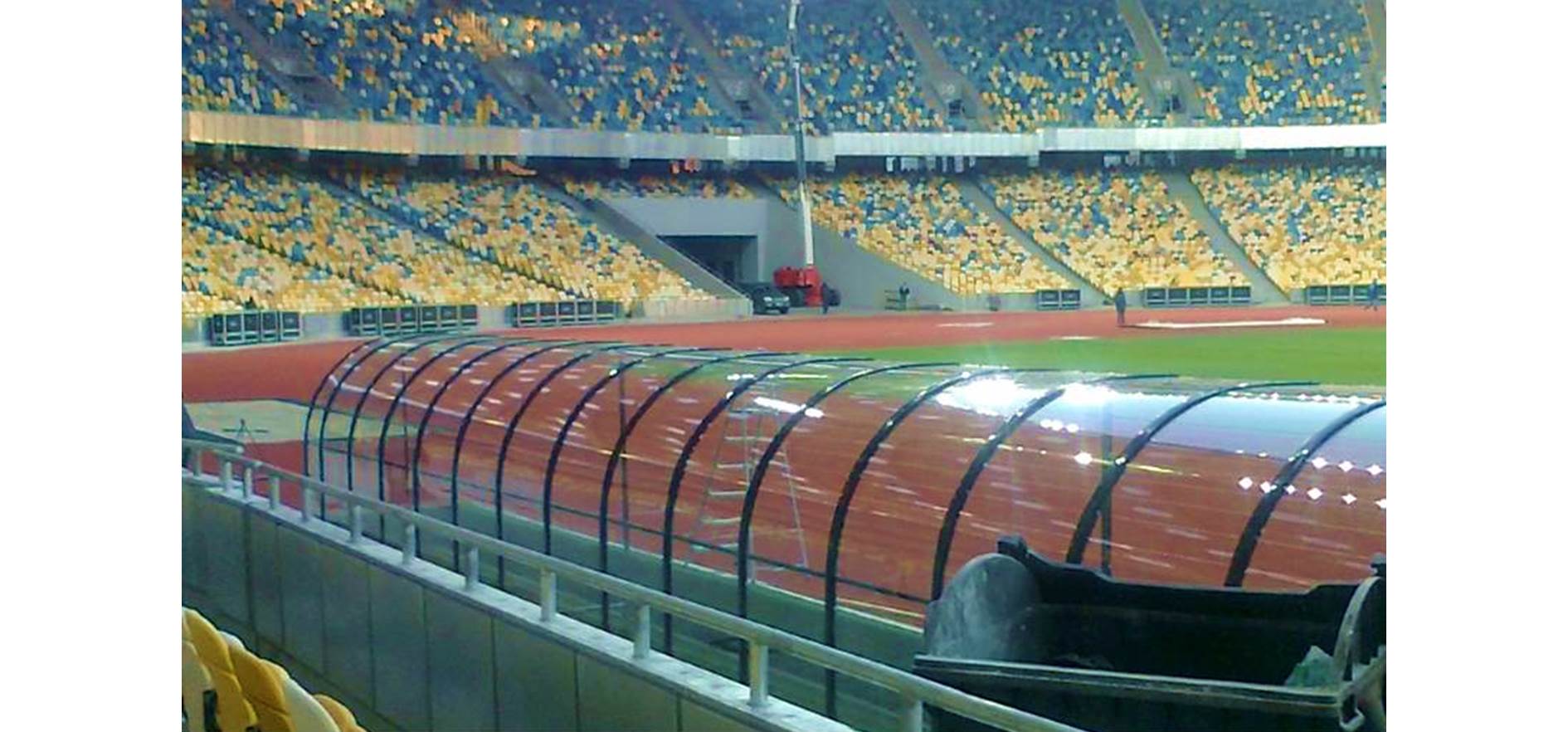

Stadiums

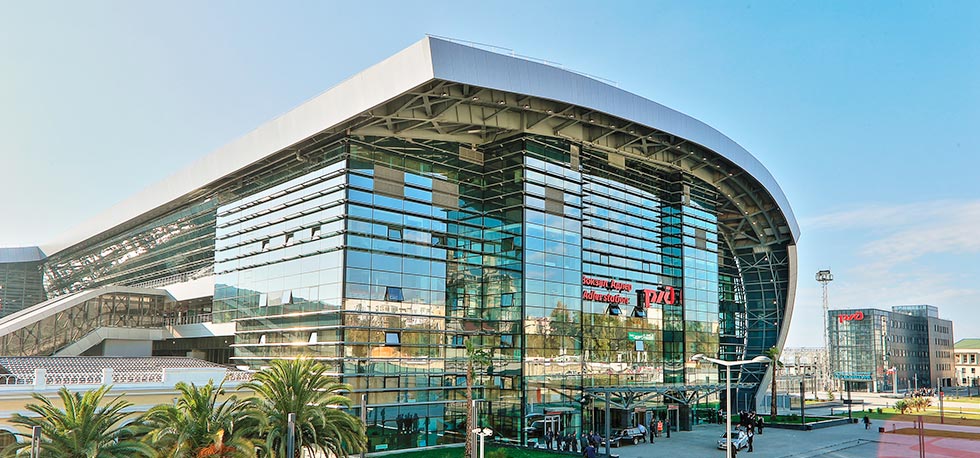

Glazed overpass
Glazed overpass

Products

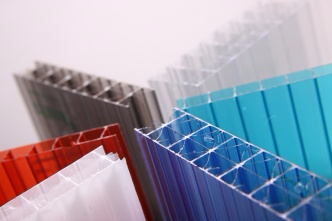

Engineering multiwall polycarbonate Novattro & accessories
Engineering multiwall polycarbonate Novattro & accessories

Energy-efficient glazing: transparent, high thermal insulation, withstand snow/wind loads

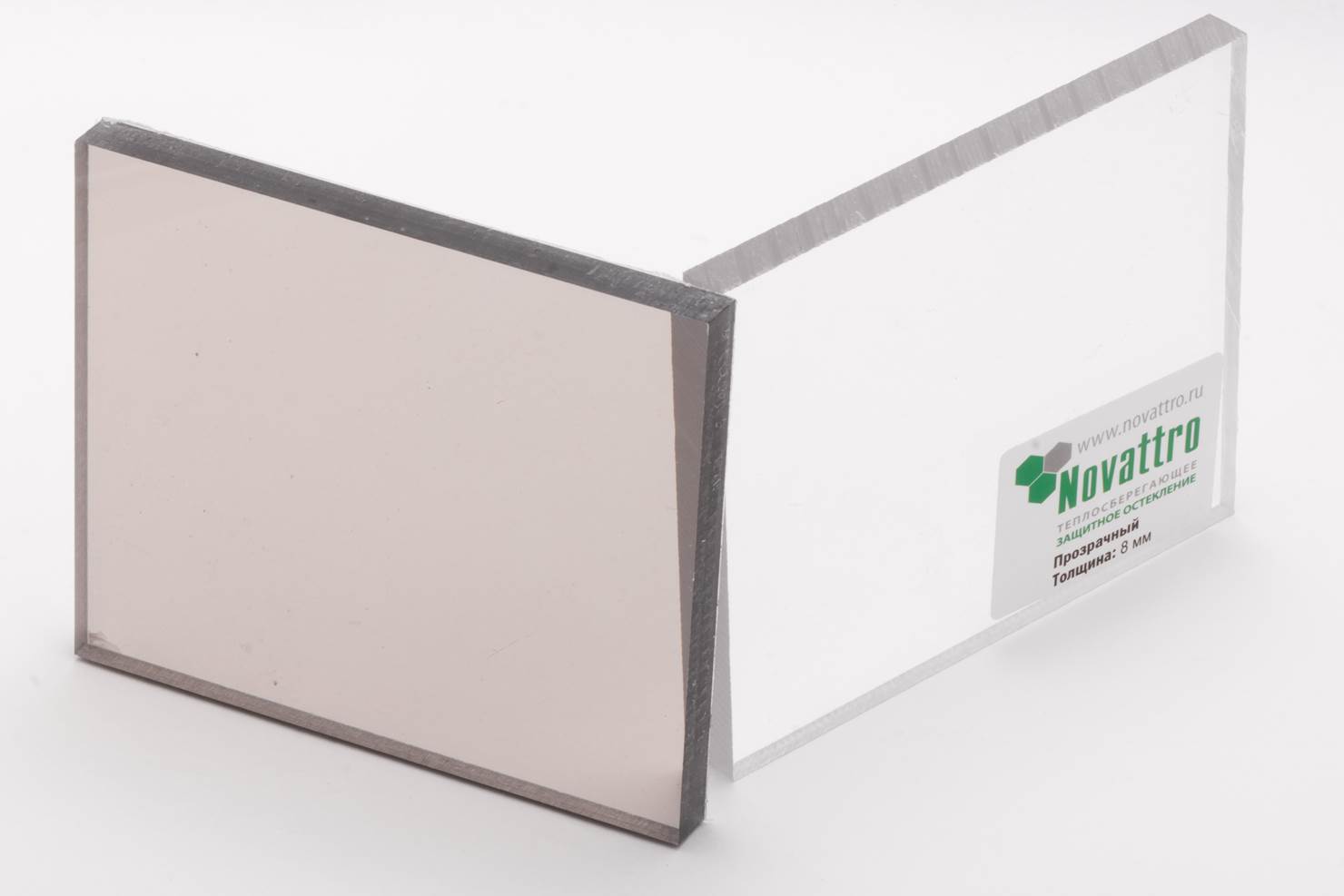

Solid polycarbonate Novattro
Solid polycarbonate Novattro

Anti-vandal glazing

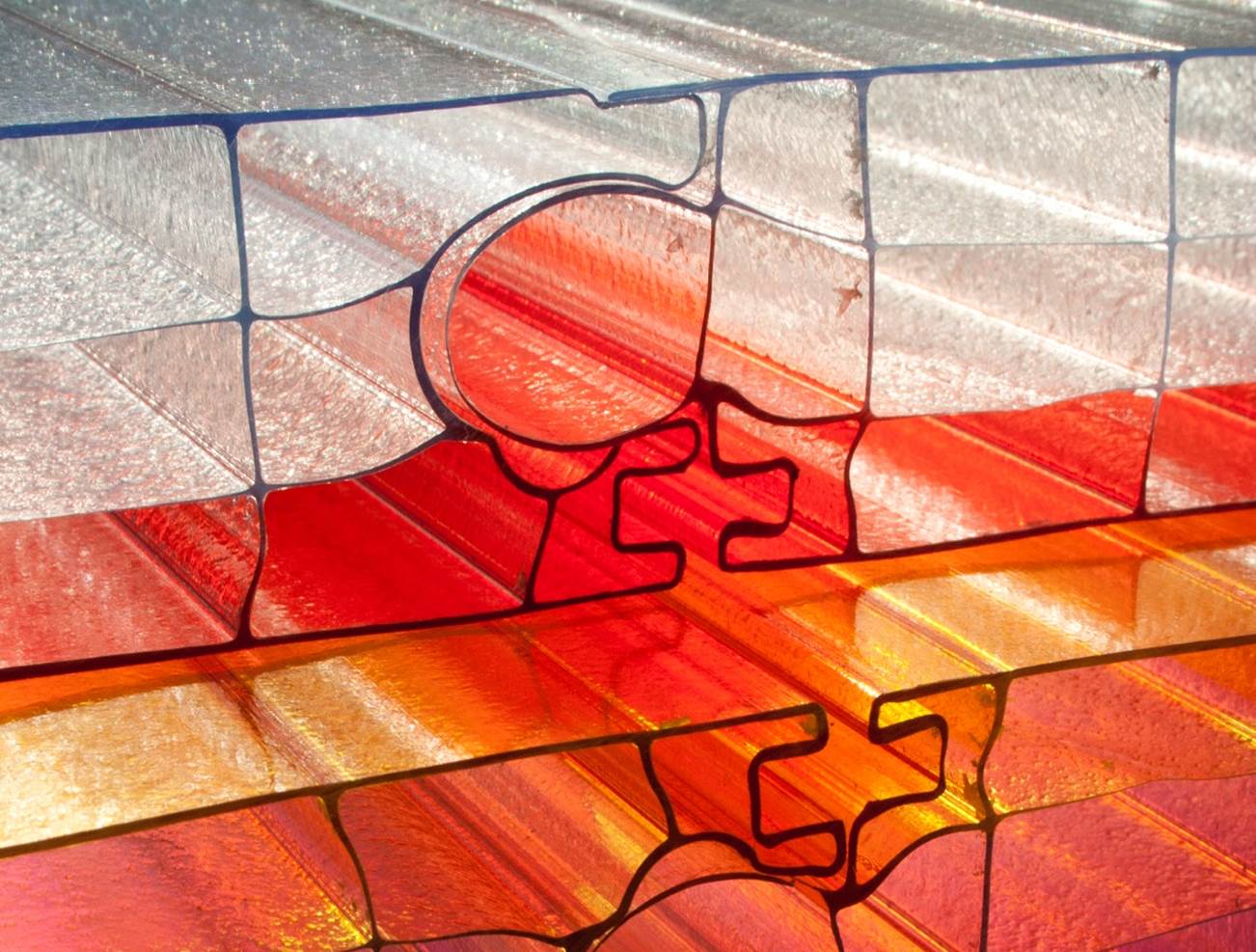

Polycarbonate click panels Novattro PROF
Polycarbonate click panels Novattro PROF

is the evolution of multiwall polycarbonate. The maximum tightness, comfortable and easy installation

Comparison of polycarbonate sheets with similar products


Свойства     Acrylic glass

PVC

PET_G

GPPS

HIPS

Glass

Solid PC

Multiwall PC

Weight, kg/m2

4,77 kg/m2 5,5 kg/m2 5,08 kg/m2 4,2 kg/m2 4,2 kg/m2  9,4 kg/m2 4,8 kg/m2 0,8 kg/m2
Min bend radius Rmin.,m 1,32 m 1 m 0,6 m - - - 0,6 m 0,7 m
Heat transfer coefficient,
W/m2 х °C
5,45   5,3     5,8 5,3 3,8-4,1
Vicat softening temperature, °C 90-105°C 70-75°C 82°C 98°C 94-97°C 600°C* 145°C -
Thermal expansivity К-1·10-5  7 7-9 6,8 8 8-10 0,9 6,5 6,5
Sound-proofing, dB 26 dB
      30 dB 27 dB 15-16 dB
Gardner Impact (J) 0,5       <15 - >400 >27
Charpy value without the notch, kJ/m2 10.дек

non-destructive

non-destructive

5-6 60 - non-destructive
18,4
V-notch Charpy value, kJ/m2 2 2 10 2 8-10 - Более 35-40
Light transmission, % 92% 87-88% 88-90% 90% 90% 84-87% 91% 80-88%


Read more in the "The Polycarbonate“ book of  SafPlast


Additionally

doc
Общая презентация "Инженерные СПК и профили Novattro"
doc
Multi-wall PC Novattro_certificate of conformance_RUS
doc
Multi-wall PC Novattro_GOST Russia Certificate of Conformity 56712 _RUS
doc
Multi-wall PC Novattro_Fire certificates_RUS
doc
Multi-wall PC Novattro_Safety and Health Certificate_RUS
doc
Solid PC Novattro_certificate of conformance_RUS
doc
Solid PC Novattro_Fire certificates_RUS
doc
Solid PC Novattro FR_Fire certificates (G1)_RUS
doc
Solid PC Novattro_Safety and Health Certificate_RUS
doc
Solid PC Novattro_GOST Russia Certificate of Conformity of CRASH-worthiness _RUS
doc
Solid PC Novattro_GOST Russia Certificate of NOISE protection _RUS
