Engineering Multiwall polycarbonate
The uniqueness of multi-wall polycarbonate is an amazing combination of characteristics of high impact resistance and light weight, transparency and the ability to bend, easy installation and chemical resistance. Polycarbonate Novattro is the construction material with optimal density and great physical and mechanical properties
Assortment
The size of sheet
2.1 * 6 m
2.1 * 12 m
Thickness
4 mm
6 mm
8 mm
10 mm
16 mm
20 mm
25 mm
32 mm
all photos
|
4 - 10 mm |
|
16 - 20 mm |
|
25 - 32 mm |

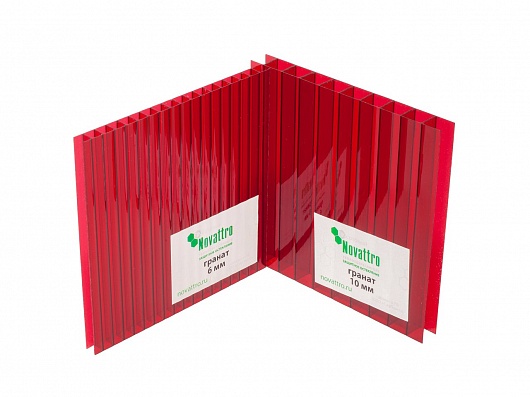

Color
clear

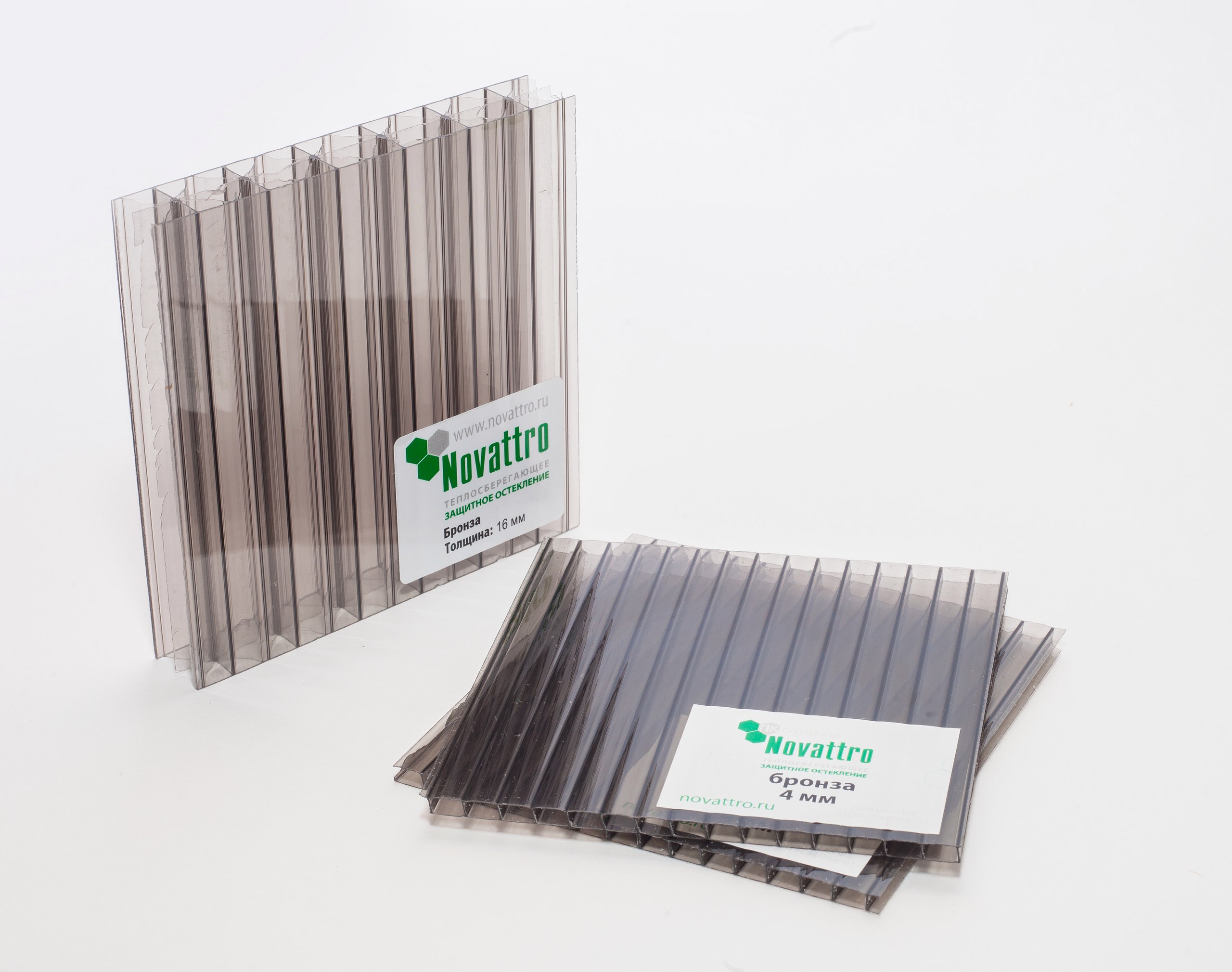

bronze
blue
turquoise blue

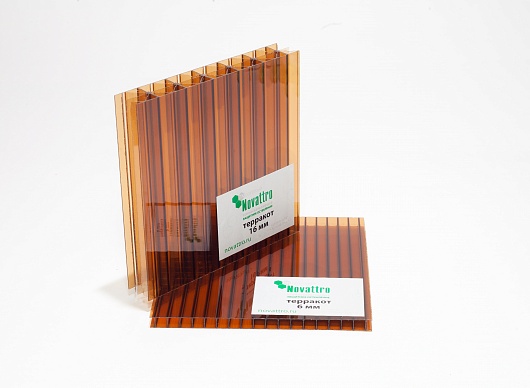

terracotta
green
garnet

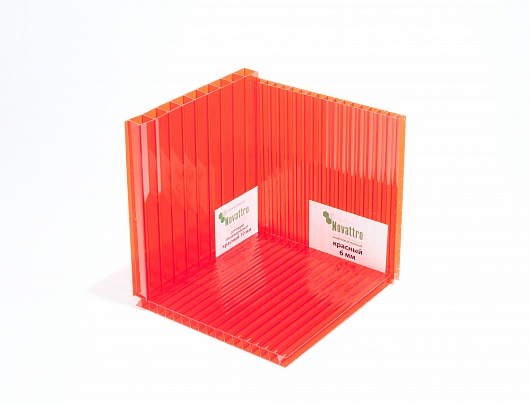

red
yellow
orange
milk white
white
decor
all photos

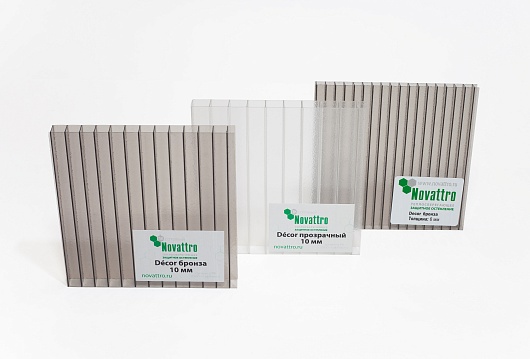

Novattro Decor possesses light-diffusing effect thanks to patten turnings on of glass fibre to the weight of sheet. Novattro Decor is released in transparent and color format.
Advantage
Multy-wall polycarbonate sheets Novattro meets all the requirements of GOST R 56712 "Multy-wall polycarbonate panels". The key parameters are the thickness of the UV-layer and the density of the sheet. The GOST and the certificate Novattro are given in the documents tab.
Back to site
Warranty. Service life 14 years
Multy-wall sheets Novattro have a guaranteed service life of not less than 14 years, which is confirmed by the test protocols in cell aging GUP NII Mosstroy and LLC "AKADEM-SIB". (see Documents tab) The manufacturer's liability is fixed in the Declaration of guarantee of quality of products of LLC "SafPlast".
Back to site
Multy-wall sheets Novattro have a guaranteed service life of not less than 14 years, which is confirmed by the test protocols in cell aging GUP NII Mosstroy and LLC "AKADEM-SIB". (see Documents tab) The manufacturer's liability is fixed in the Declaration of guarantee of quality of products of LLC "SafPlast".
Protective UV-layer
Polycarbonate sheets of different manufacturers differ greatly in quality and service life, which is a key factor for the engineering materials. Polycarbonate is exposed to solar radiation, and if the sheets are not protected by a special UV-layer of optimal thickness, after two or three years the material will disintegrate. The sheets Novattro are protected by UV-layer of optimal concentration and thickness (not less than 40 micron - 60 micron) (the best in the world OMiPA extrusion equipment ensures uniform application of UV-layer). On solid polycarbonate sheets UV-layer is applied on both sides of the sheet (this is a necessary condition for transparent fences and noise screens).
Back to site
Polycarbonate sheets of different manufacturers differ greatly in quality and service life, which is a key factor for the engineering materials. Polycarbonate is exposed to solar radiation, and if the sheets are not protected by a special UV-layer of optimal thickness, after two or three years the material will disintegrate. The sheets Novattro are protected by UV-layer of optimal concentration and thickness (not less than 40 micron - 60 micron) (the best in the world OMiPA extrusion equipment ensures uniform application of UV-layer). On solid polycarbonate sheets UV-layer is applied on both sides of the sheet (this is a necessary condition for transparent fences and noise screens).
Product Assurance Declaration of SafPlast
guarantees a service life of polycarbonate and acrylic sheets and is a legally registered financial responsibility of the producer to the consumers. Attached to the payment documents warranty card sends the user to this Declaration and its provisions.
In contrast to the certificates the Declaration is the presence of the registered obligations of the producer to the consumer (reimbursement of the cost of sheets).
Download the Declaration in the section "Documents" below.
Read more about quality here.
Back to site
guarantees a service life of polycarbonate and acrylic sheets and is a legally registered financial responsibility of the producer to the consumers. Attached to the payment documents warranty card sends the user to this Declaration and its provisions.
In contrast to the certificates the Declaration is the presence of the registered obligations of the producer to the consumer (reimbursement of the cost of sheets).
Download the Declaration in the section "Documents" below.
Read more about quality here.

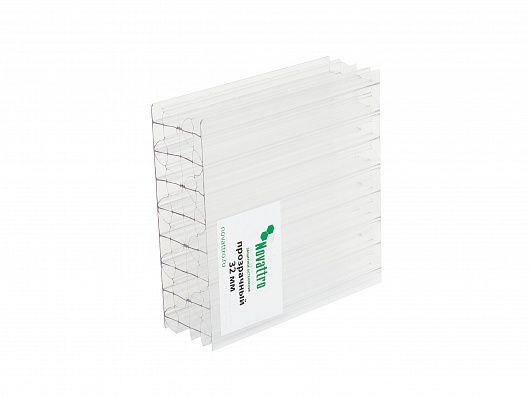

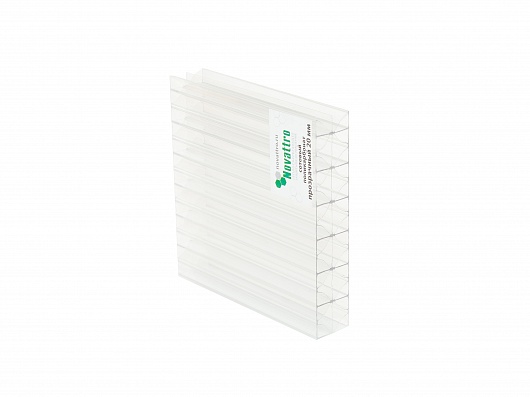

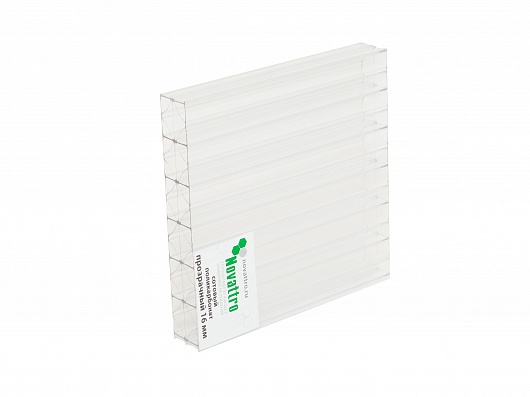

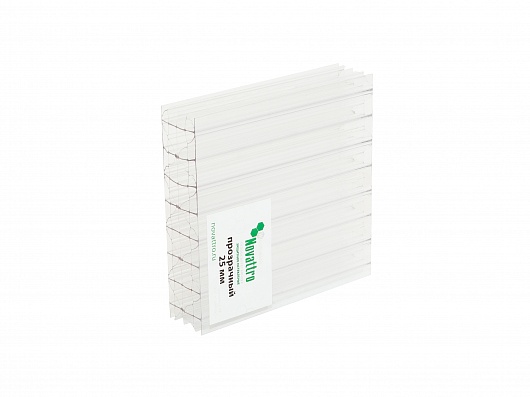

Multy-wall polycarbonate sheets Novattro have a different structure of the sheet depending on thickness. Thus, sheets with a thickness of 16 to 32 mm have a special X-shaped structure designed together with Kazan Technological University in accordance with the requirements for strength, transparency and heat resistance. View samples with X shaped structure at the top of the page.
Back to site
Technical support
Experts SafPlast developed a reference book "On the use of polycarbonate in construction" (on russian). This book will help to design and install structures with cellular and solid polycarbonate. We also provide detailed instructions.
Technical support with design (for installation) designs with a locking panel Novattro PROF is having technical expert Kuznetsov Vladimir Medvedev , who for more than 10 years of experience working with locking polycarbonate panels. Write Your question to Vladimir Anatolyevich the mail v.kuznetsov@safplast.ru.
Multy-wall polycarbonate (especially with a thickness of 16-32mm) is energy-saving material due to the combination of light transmission and heat-saving properties. It is 35% more efficient saves heat indoors:
the savings on heat and electroenergy (+4 hours of natural light; - 35% on energy consumption for heating due to the heat saving properties of a multi-channel air-filled structure of the sheet)
relief support structures (up to 7%) and reducing the total roofing material to 45% (due to light specific gravity (12 times lighter than glass) and the ability to withstand high wind and snow loads)
safe material (polycarbonate doesn't break into pieces, light weight)
Comparison with glass:
Thermal-insulating properties of sheet thickness of 32 mm allow it to be an alternative to single layer brick masonry.
Back to site
the savings on heat and electroenergy (+4 hours of natural light; - 35% on energy consumption for heating due to the heat saving properties of a multi-channel air-filled structure of the sheet)
relief support structures (up to 7%) and reducing the total roofing material to 45% (due to light specific gravity (12 times lighter than glass) and the ability to withstand high wind and snow loads)
safe material (polycarbonate doesn't break into pieces, light weight)
Comparison with glass:
|
Material |
Multiple glass pane |
Multy-wall polycarbonate Novattro | ||
| Thickness | 24 mm (4-6-4-6-4) |
24 mm (4-16-4) double-pane glass |
25 mm | 16 mm |
|
triple-pane glass |
||||
| Standard sizes | 1х1,5 m or 1,5х1,6 m | 2,1х6 m or 2,1х12 m | ||
|
Thermal resistance, sq. m* C/W |
0,42 | 0,35 | 0,45 | 0,39 |
|
(GOST 24866-99) |
||||
|
Weight, kg/sqm |
32,5 | 20 | 3,5 | 2,55 |
|
Injury risk of pieces |
High due to the low impact strength of glass | Practically excluded due to high strength of the sheet | ||
Thermal-insulating properties of sheet thickness of 32 mm allow it to be an alternative to single layer brick masonry.
Construction
 |
The popularity of polycarbonate sheets, panels and profiles Novattro as building materials due to a unique combination of properties: high heat and sound insulation, transparence and impact proof. Read more |
Agriculture
 |
Transparent polycarbonate is the most suitable material for greenhouses: from country and farm to large greenhouses Read more |

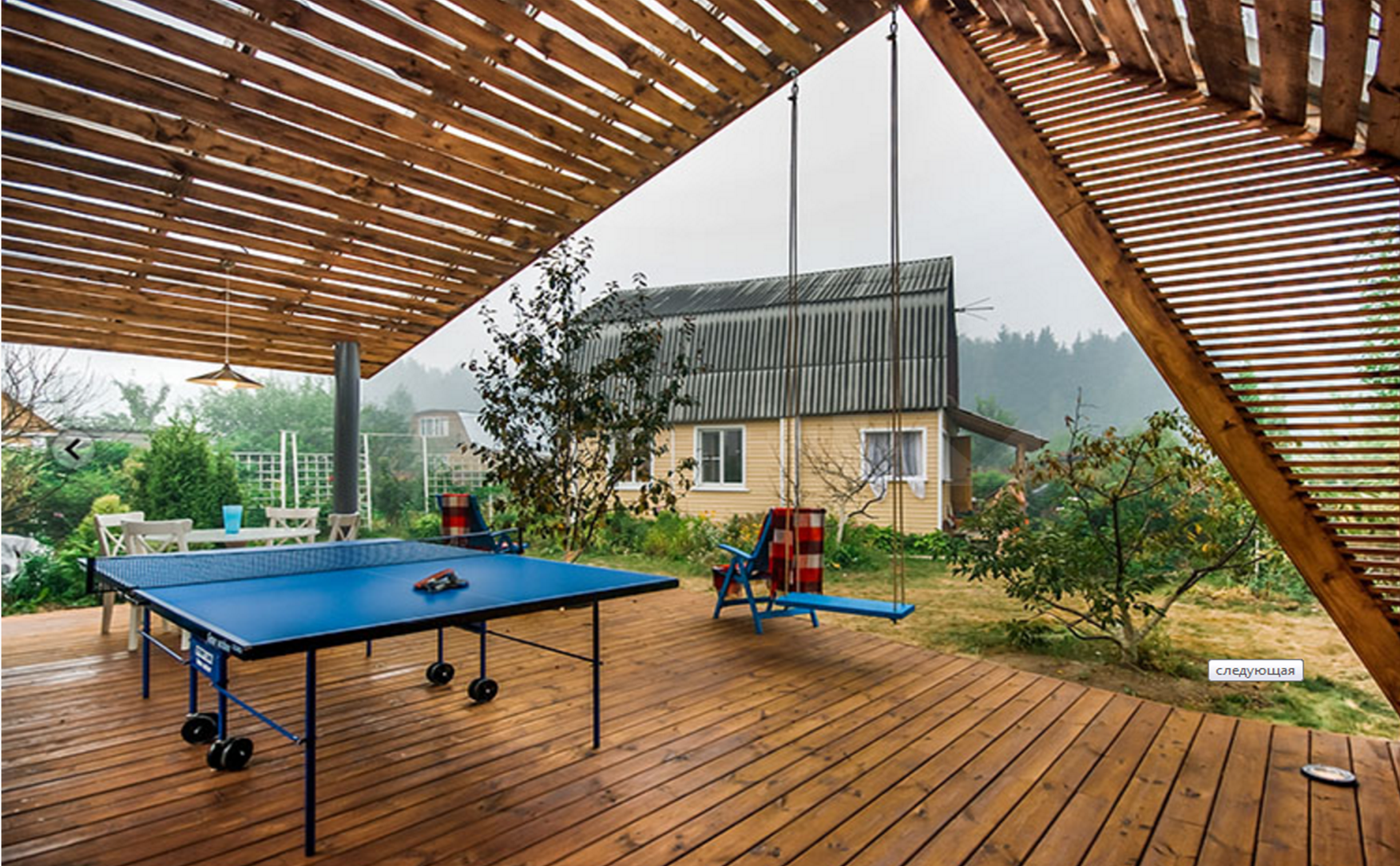

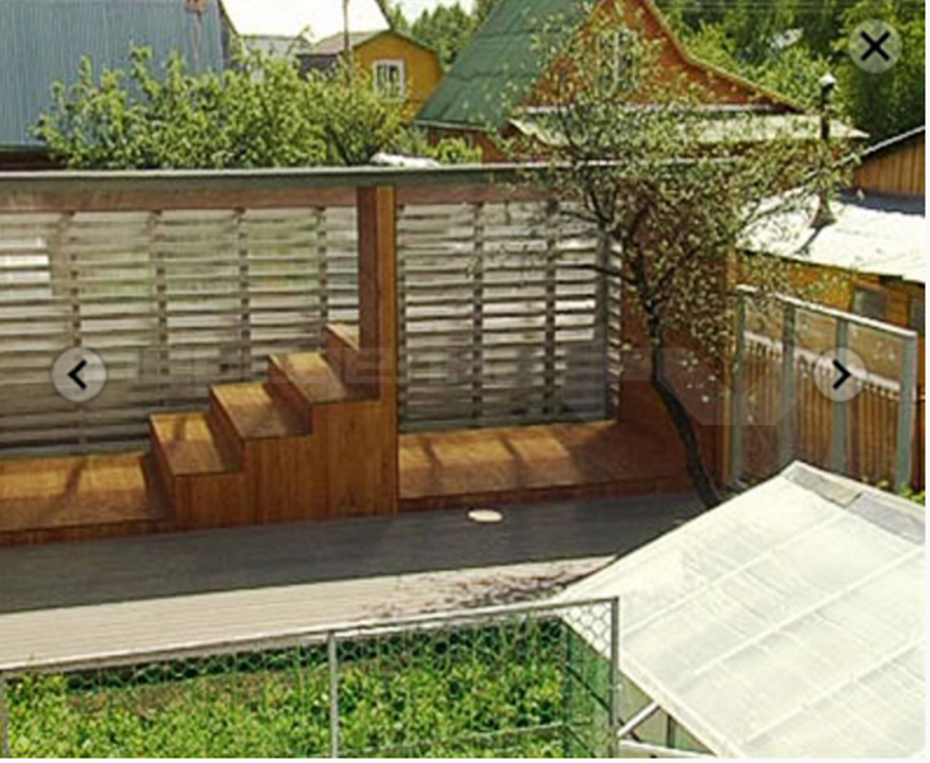

The use of TV programmes "Remake"

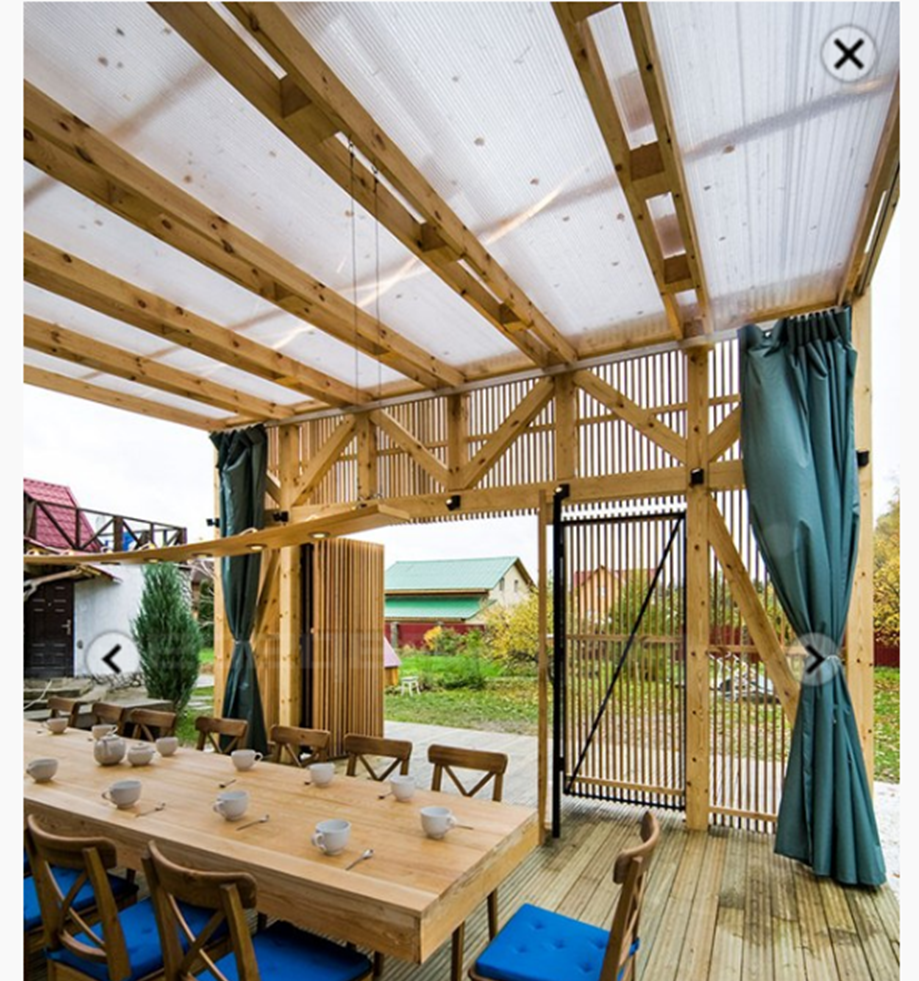

 Беседка с прозрачными вставками сотового поликарбоната |

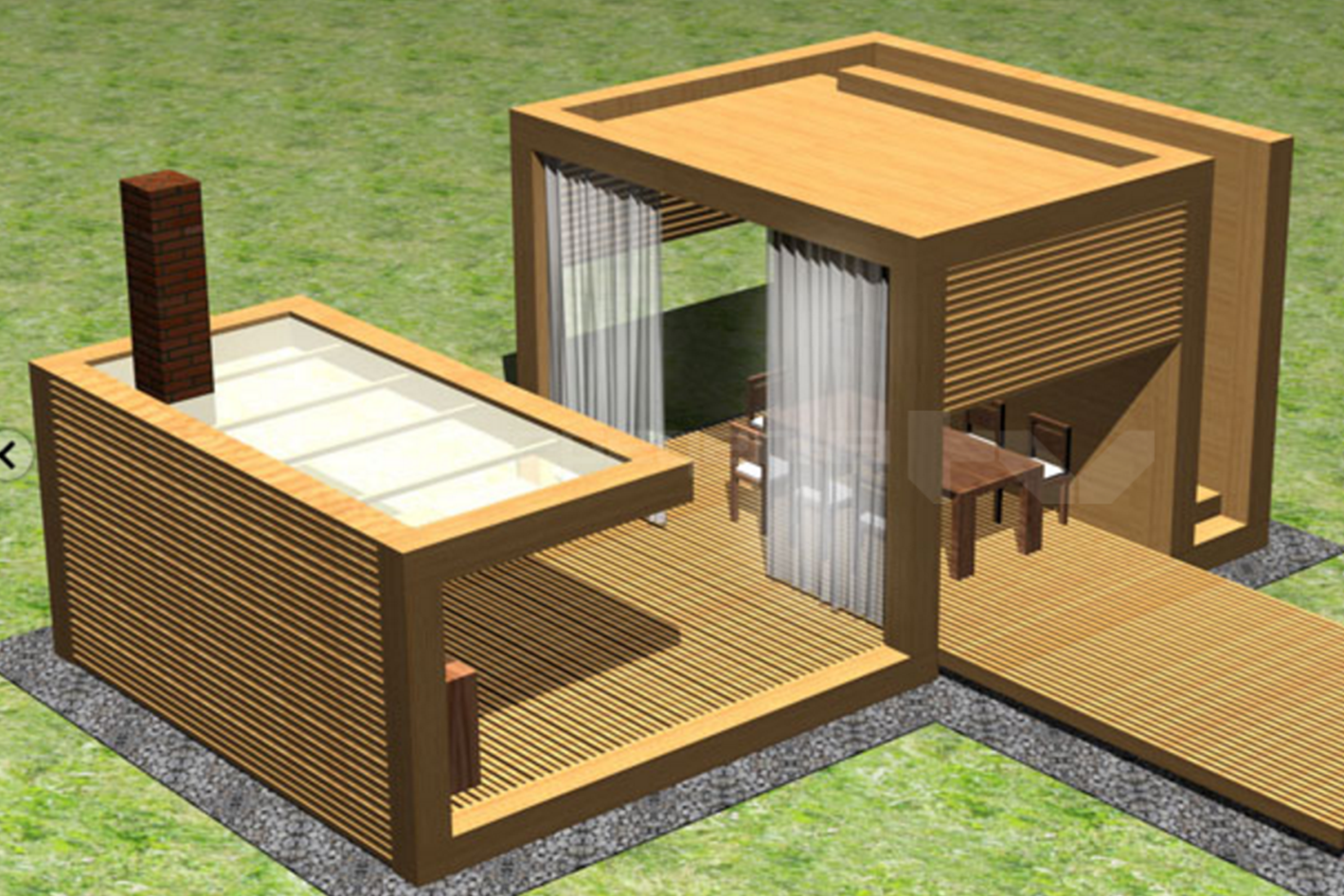

 "Казан-мангал" (беседка с мангалом) |
 "А-ля шале" (летняя беседка в стиле альпийского шале) |
 Крыша беседки-яхты |
General characteristics
| Change of linear sizes after thermal exposure: no more | 2,3 % |
| Light transmission (for 4mm): not less than | 81,38 % |
| The average thickness of the UV layer | 40- 55 µm (depending on the thickness of the sheets) |
Характеристики по толщинам
| Properties | Thikness of panels | |||||||
| 4 mm | 6 mm | 8 mm | 10 mm |
16 mm |
20 mm | 25 mm | 32 mm | |
| The structure of the panel | Н-shaped | X-shaped | ||||||
| Min bend radius, m | 0,7 | 1,05 | 1,2-1,4 | 1,5-1,75 | 2,4-2,8 | 3,5 | 3,75-4,4 | 4,8-5,7 |
| Sound-proofing, dB | 15-16 | 17 | 17 | 18 | 18 | 19 | 20 | 22 |
| Heat transfer resistance R, m2°С/W, not less than | 0,23 | 0,27 | 0,3 | 0,35 | 0,37 | 0,4 | 0,45 | 0,5 |
|
Heat transfer coefficient, W/m2х°К |
4,1 | 3,7 | 3,6 | 3,1 | 2,0-2,4 | 1,8-2,0 | 1,6-1,7 | 1,4 |
| Light transmission (clear color) | 81-82 | 80-82 | 80 | 78-82 | 60-62 | 46-50 | 45-48 | 42-45 |
| Impact resistant, N*м | 21,3 | 27 | > 27 | > 27 | > 27 | > 27 | > 27 | > 27 |
Comparison with glass
|
Feature |
Glass | Multi-wall polycarbonate |
| Weight | 9,4 kg/m2 | 0,75 kg/m2 |
|
Min bend radius |
- | 0,7 м |
| Coefficient of heat transmission, | 5,8 W/m2*°С | 3,8-4,1 W/m2*°С |
| Vicat softening temperature | 600 °C | 145 °C |
| Coefficient of linear thermal expansion К-1•10-5 | 0,9 | 6,5 |
| Sound-proofing | 30 dB | 17 dB |
| Gardner Impact | - | >27 J |
| Charpy value without the notch | - | 18,4 kJ/m2 |
| Коэффициент светопропускания | 84 % | 82 % |
Multi-wall PC Novattro_certificate of conformance_RUS
Technical manual
Multi-wall PC Novattro_GOST Russia Certificate of Conformity 56712 _RUS
Multi-wall PC Novattro_Fire certificates_RUS
Multi-wall PC Novattro_Safety and Health Certificate_RUS
Complect Multi-wall PC Novattro
Comparison with glass units
|
Feature |
Single-glazing |
Glazed two-chamber |
Multiwall PC |
|
| Thickness |
24 mm (4-16-4) |
24 mm (4-6-4-6-4) |
16 mm | 25 mm |
| Standard sizes | 1*1,5 or 1,5*1,6 m | 2,1 * 6 or 2,1 * 12 m | ||
|
Heat transfer resistance |
0,35 m2*°С/W |
0,42 m2*°С/W |
0,39 m2*°С/W |
0,45 m2*°С/W |
|
Weight |
20 kg/m2 | 32,5 kg/m2 | 2,55 kg/m2 | 3,5 kg/m2 |
| The danger of splinters | is high, due to glass low impact-resistant |
Virtually eliminated, due to increased strength of polycarbonate |
||
